A Hako B45 that leaves puddles is not a mystery, and it is rarely a machine fault. It is almost always one of five things, and they have a natural order — so work through them in that order instead of replacing parts at random. Most of the time the fix costs less than the diagnosis.
One important framing first: puddles mean water recovery has failed, not that cleaning has failed. The scrubber is still washing the floor. It just is not picking the dirty water back up, which leaves a wet, slippery, and in a hygiene-sensitive site, a non-compliant floor.
Rule one: rule out the vacuum path before blaming the blade
Before touching the squeegee, spend two minutes on these. They are free to check and they account for a surprising share of “bad blade” complaints:
- Recovery tank full or float switch stuck — the machine stops pulling and everything trails
- Vacuum hose blocked, split, or off its port — listen for a change in motor pitch
- Drain hose leaking — water goes straight back out onto the floor
- Tank lid gasket — a poor seal kills suction at the source
- Debris screen or filter — clogged screens starve airflow
If suction at the squeegee mouth feels weak with your hand, the problem is upstream of the blade. Fix that first; a new blade will not recover water that the vacuum never pulled.
Cause 1: The blade is worn or damaged

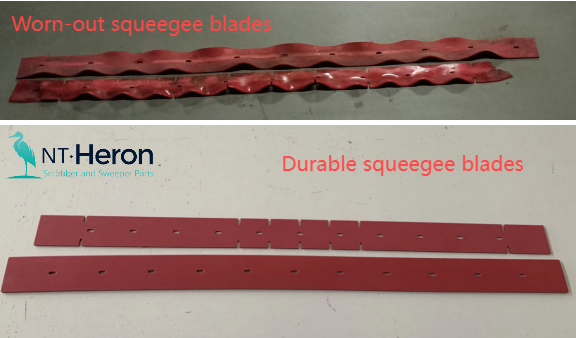

This is the most common genuine cause. The rubber edge is what seals against the floor; friction, chemicals and temperature gradually degrade it. Look for:
- A rounded or wavy edge instead of a crisp square one
- Nicks, tears, or chunks missing
- A blade that has taken a permanent set — it no longer sits flat
- Thinning, where the blade has worn up into its mounting slot
On a B45, the rear blade does the final wipe, so it fails before the front blade and it is the one that leaves the trail. Front and rear are replaced together as one set — 1 set = one front blade + one rear blade — because the assembly only performs as a pair.
Cause 2: Wrong angle, wrong height, or wrong pressure
A squeegee does not work by pressing hard. It works by sitting at the correct attitude: the blade should just kiss the floor with a slight trailing deflection, front and rear blades level across the whole width.
Check:
- Height/level — if one end rides higher, that end leaks. Level the assembly, not the blade.
- Tilt — too little and the blade skips; too much and it folds under and squeals.
- Casters and frame — worn squeegee wheels quietly change the geometry.
- Down-pressure — if your machine has adjustment, more pressure is not the answer to a leak. It wears blades faster and usually makes streaking worse.
Cause 3: Debris riding on the edge
Grit, string, floor tape and label residue sit on the wiping edge and hold it off the floor by a millimetre — which is all it takes. Wipe the blade at the start and end of each shift, and flush the assembly. This is the cheapest fix on the list and it is the one most often skipped.
Cause 4: The floor is not what the blade was specified for
This is the mis-specification that gets misdiagnosed as a quality problem. A natural rubber blade on rough, damaged or oily concrete cannot hold a seal: it conforms too much, can be dragged over aggregate, and in oily conditions it absorbs oil, goes wavy, and stops sealing.
Match the grade to the floor:
| Floor and soil | Grade | Hardness |
|---|---|---|
| Smooth tile, PVC, epoxy | Natural rubber NR-65 | 65 ± 5 Shore A |
| Rough concrete, oil, grease, aggressive detergent | Cast polyurethane PU-85 | 85 ± 5 Shore A |
| Smooth tile, light duty | Gum rubber GR-45 | 45 ± 5 Shore A |
Two cautions. Harder is not automatically better — too hard and the edge skips over texture instead of sealing into it. And red rubber is not automatically Linatex; red is pigment, and the claim that matters is measured abrasion, tensile and rebound. Our squeegee blade material comparison goes through the selection properly.
Cause 5: The blade is simply the wrong part
Fitment on these machines is dimensional: length, thickness, slot pattern and hole pitch. A blade from a visually similar machine will often mount and still leak. Ours are held to length ±1.0 mm, thickness ±0.2 mm, hole pitch ±0.5 mm.
If you are running a B45 or the related B115R — or any of the B70, B75, B90, B120, B175, B910 platforms — check the fitment against our Hako B45 and B115R blade guide before ordering. The wider list of 75 models across 17 brands is in the cross-reference guide.
How often should this be happening?
In normal commercial use a blade runs roughly two to three months — a typical industry figure, not a guarantee. Frequency, floor condition, temperature and chemicals all move it, and polyurethane grades are more sensitive to those variables than natural rubber. If you are replacing blades every three weeks, you do not have a wear problem, you have one of causes 2, 4 or 5.
Build a simple maintenance rhythm: wipe the blades each shift, inspect the edges weekly, check assembly level monthly, and change the set on condition rather than on a calendar. Our replacement cycle guide shows how service companies turn that into a standing order instead of a scramble.
Frequently Asked Questions
Can I replace just the rear blade?
You can, but the front blade is usually not far behind, and the set is the trade unit. Replacing both is cheaper than a second call-out.
Is the puddle always the blade’s fault?
No. Check the recovery tank, hoses, lid gasket and filters first — that five-minute check resolves a large share of cases.
What is the minimum order for B45 blades?
20 sets per style for models we already tool. Mixed orders are allowed at a USD 3,000 minimum value.
What if the replacement is defective?
Claims within 7 days of receipt; manufacturing defects covered; only the defective pieces replaced; freight on the buyer, usually consolidated into your next order; unboxing video as proof.
Get the right B45 set
Send the machine model and floor type — and whether there is oil in the process — and we will confirm fitment, recommend a grade, and quote within one business day.
